OneLibro Architecture

This document describes the system architecture, design patterns, and technical decisions behind OneLibro.

System Overview
Technology Stack
Application Architecture
Data Flow
Security Architecture
Design Patterns

System Overview

OneLibro is a Next.js 15 application with three distinct subdomains, each serving a specific purpose:

OneLibro System Context

┌─────────────────────────────────────────────────────────┐
│                     OneLibro System                     │
├─────────────────────────────────────────────────────────┤
│                                                          │
│  ┌────────────────┐  ┌──────────────┐  ┌────────────┐  │
│  │  Portfolio      │  │  Finance App │  │  Admin     │  │
│  │  (Main Site)   │  │  (OneLibro) │  │  Dashboard │  │
│  └────────────────┘  └──────────────┘  └────────────┘  │
│        │                    │                  │        │
│        └────────────────────┴──────────────────┘        │
│                           │                             │
│                    ┌──────┴───────┐                     │
│                    │   Next.js 15  │                    │
│                    │   (App Router)│                    │
│                    └──────┬───────┘                     │
│                           │                             │
│            ┌──────────────┼──────────────┐              │
│            │              │              │              │
│      ┌─────┴─────┐  ┌────┴────┐  ┌──────┴──────┐       │
│      │ Supabase  │  │  Plaid  │  │   Vercel    │       │
│      │ (Database)│  │  (Bank) │  │ (Hosting)   │       │
│      └───────────┘  └─────────┘  └─────────────┘       │
│                                                          │
└─────────────────────────────────────────────────────────┘

Subdomain Routing

The application uses Next.js rewrites to handle subdomain routing:

Domain	Path	Purpose
`yatheeshnagella.com`	`/app/page.jsx`	Personal portfolio
`finance.yatheeshnagella.com`	`/app/finance/*`	Finance application
`admin.yatheeshnagella.com`	`/app/admin/*`	Admin dashboard

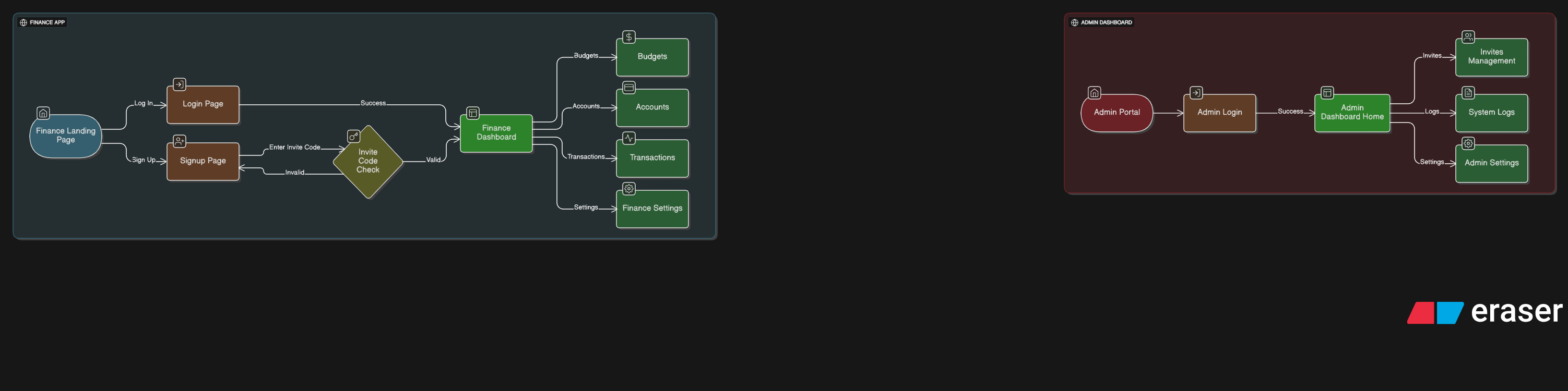

User Flow - Finance and Admin

Implementation (next.config.ts):

async rewrites() {
  return {
    beforeFiles: [
      // Admin subdomain
      {
        source: '/:path*',
        has: [{ type: 'host', value: 'admin.yatheeshnagella.com' }],
        destination: '/admin/:path*',
      },
      // Finance subdomain
      {
        source: '/:path*',
        has: [{ type: 'host', value: 'finance.yatheeshnagella.com' }],
        destination: '/finance/:path*',
      },
    ],
  };
}

Technology Stack

Frontend Stack

React 19.1.0
├── Next.js 15.5.4 (App Router + Turbopack)
├── TypeScript 5.x
├── Tailwind CSS v4
└── Component Libraries
    ├── Recharts (charts/visualizations)
    ├── Lucide React (icons)
    ├── react-hot-toast (notifications)
    └── react-plaid-link (Plaid integration)

Backend Stack

Next.js API Routes (Serverless Functions)
├── Supabase
│   ├── PostgreSQL (database)
│   ├── Authentication
│   ├── Row Level Security (RLS)
│   └── Real-time subscriptions
├── Plaid API
│   ├── Link (bank connection)
│   ├── Transactions API
│   ├── Accounts API
│   └── Webhooks
└── Security Libraries
    ├── bcryptjs (password hashing)
    ├── otplib (TOTP 2FA)
    └── crypto (AES-256-CBC encryption)

Data Management

State Management
├── React Context API
│   ├── AuthContext (user authentication)
│   └── FinanceThemeContext (theme management)
├── SWR (data fetching & caching)
│   ├── useAccounts hook
│   ├── useTransactions hook
│   └── Automatic revalidation
└── Local State (useState, useReducer)

Application Architecture

Layered Architecture

┌─────────────────────────────────────────────────┐
│              Presentation Layer                  │
│  (React Components, Pages, UI)                   │
│  - app/finance/*, app/admin/*                    │
│  - components/finance/*                          │
└──────────────────┬──────────────────────────────┘
                   │
┌──────────────────┴──────────────────────────────┐
│              Business Logic Layer                │
│  (Hooks, Contexts, State Management)             │
│  - contexts/*                                    │
│  - Custom hooks (useAuth, useAccounts, etc.)     │
└──────────────────┬──────────────────────────────┘
                   │
┌──────────────────┴──────────────────────────────┐
│              Service Layer                       │
│  (API Routes, Helper Functions)                  │
│  - app/api/*                                     │
│  - lib/supabase.ts, lib/plaid.ts                 │
└──────────────────┬──────────────────────────────┘
                   │
┌──────────────────┴──────────────────────────────┐
│              Data Layer                          │
│  (Database, External APIs)                       │
│  - Supabase (PostgreSQL + RLS)                   │
│  - Plaid API                                     │
└─────────────────────────────────────────────────┘

File Structure

yatheesh-portfolio/
├── app/                          # Next.js App Router
│   ├── finance/                  # Finance app pages
│   │   ├── page.tsx             # Dashboard (main)
│   │   ├── accounts/            # Account management
│   │   ├── transactions/        # Transaction history
│   │   ├── budgets/             # Budget management
│   │   ├── login/               # Auth page
│   │   └── layout.tsx           # Finance layout (AuthProvider)
│   ├── admin/                   # Admin dashboard
│   │   ├── page.tsx            # Admin home
│   │   ├── users/              # User management
│   │   ├── invites/            # Invite management
│   │   ├── logs/               # Audit logs
│   │   ├── login/              # Admin auth
│   │   └── layout.tsx          # Admin layout
│   └── api/                    # API routes
│       ├── plaid/              # Plaid integration
│       ├── admin/              # Admin APIs
│       └── transactions/       # Transaction CRUD
├── components/                  # React components
│   └── finance/                # Finance-specific components
│       ├── PlaidLink.tsx       # Plaid Link button
│       ├── DashboardCard.tsx   # Stat cards
│       ├── SpendingChart.tsx   # Recharts visualization
│       └── ProtectedRoute.tsx  # Auth wrapper
├── contexts/                   # React Context providers
│   ├── AuthContext.tsx         # User authentication
│   └── FinanceThemeContext.tsx # Theme management
├── lib/                        # Utility libraries
│   ├── supabase.ts            # Supabase helpers
│   ├── plaid.ts               # Plaid integration
│   ├── admin-auth.ts          # Admin authentication
│   ├── env.ts                 # Environment validation
│   └── utils.ts               # Generic utilities
├── types/                      # TypeScript definitions
│   ├── supabase.ts            # Generated from Supabase
│   └── database.types.ts      # Custom database types
└── supabase/                  # Database schema
    └── migrations/            # SQL migration files

Data Flow

User Authentication Flow

┌─────────┐
│  User   │
└────┬────┘
     │
     │ 1. Enter email/password
     ▼
┌────────────────┐
│  Login Page    │
│  /finance/login│
└────┬───────────┘
     │
     │ 2. Call signIn()
     ▼
┌────────────────────┐
│  lib/supabase.ts   │
│  signIn(email, pwd)│
└────┬───────────────┘
     │
     │ 3. Authenticate
     ▼
┌────────────────────┐
│  Supabase Auth     │
│  signInWithPassword│
└────┬───────────────┘
     │
     │ 4. Update last_login
     ▼
┌────────────────────┐
│  users table       │
│  UPDATE last_login │
└────┬───────────────┘
     │
     │ 5. Set session
     ▼
┌────────────────────┐
│  AuthContext       │
│  setUser(userData) │
└────┬───────────────┘
     │
     │ 6. Redirect
     ▼
┌────────────────────┐
│  Dashboard         │
│  /finance          │
└────────────────────┘

Plaid Bank Connection Flow

┌─────────┐
│  User   │
└────┬────┘
     │ 1. Click "Connect Bank"
     ▼
┌──────────────────────┐
│  PlaidLink Component │
└────┬─────────────────┘
     │
     │ 2. Request link token
     ▼
┌─────────────────────────────┐
│  POST /api/plaid/           │
│  create-link-token          │
└────┬────────────────────────┘
     │
     │ 3. Create link token
     ▼
┌─────────────────────────────┐
│  Plaid API                  │
│  linkTokenCreate()          │
└────┬────────────────────────┘
     │
     │ 4. Return link_token
     ▼
┌─────────────────────────────┐
│  PlaidLink Component        │
│  usePlaidLink({ token })    │
└────┬────────────────────────┘
     │
     │ 5. User selects bank
     │    & authorizes
     ▼
┌─────────────────────────────┐
│  Plaid Link UI              │
│  (Modal)                    │
└────┬────────────────────────┘
     │
     │ 6. Return public_token
     ▼
┌─────────────────────────────┐
│  onSuccess callback         │
└────┬────────────────────────┘
     │
     │ 7. Exchange token
     ▼
┌─────────────────────────────┐
│  POST /api/plaid/           │
│  exchange-token             │
└────┬────────────────────────┘
     │
     │ 8. Exchange for access_token
     ▼
┌─────────────────────────────┐
│  Plaid API                  │
│  itemPublicTokenExchange()  │
└────┬────────────────────────┘
     │
     │ 9. Encrypt access_token
     ▼
┌─────────────────────────────┐
│  lib/plaid.ts               │
│  encryptAccessToken()       │
└────┬────────────────────────┘
     │
     │ 10. Store in database
     ▼
┌─────────────────────────────┐
│  plaid_items table          │
│  INSERT encrypted_token     │
└────┬────────────────────────┘
     │
     │ 11. Fetch accounts
     ▼
┌─────────────────────────────┐
│  Plaid API                  │
│  accountsGet()              │
└────┬────────────────────────┘
     │
     │ 12. Store accounts
     ▼
┌─────────────────────────────┐
│  accounts table             │
│  INSERT multiple rows       │
└────┬────────────────────────┘
     │
     │ 13. Refresh UI
     ▼
┌─────────────────────────────┐
│  Dashboard                  │
│  SWR revalidate             │
└─────────────────────────────┘

Transaction Sync Flow

┌──────────────┐
│  Plaid       │
│  Webhook     │
└──────┬───────┘
       │
       │ TRANSACTIONS_UPDATE
       ▼
┌─────────────────────────┐
│  POST /api/plaid/webhook│
└──────┬──────────────────┘
       │
       │ Verify webhook signature
       ▼
┌─────────────────────────────┐
│  lib/plaid.ts               │
│  verifyWebhookSignature()   │
└──────┬──────────────────────┘
       │
       │ Trigger sync (background)
       ▼
┌─────────────────────────────┐
│  POST /api/plaid/           │
│  sync-transactions          │
└──────┬──────────────────────┘
       │
       │ Get encrypted access_token
       ▼
┌─────────────────────────────┐
│  plaid_items table          │
│  SELECT access_token        │
└──────┬──────────────────────┘
       │
       │ Decrypt token
       ▼
┌─────────────────────────────┐
│  lib/plaid.ts               │
│  decryptAccessToken()       │
└──────┬──────────────────────┘
       │
       │ Fetch transactions (cursor-based)
       ▼
┌─────────────────────────────┐
│  Plaid API                  │
│  transactionsSync()         │
└──────┬──────────────────────┘
       │
       │ Process added/modified
       ▼
┌─────────────────────────────┐
│  transactions table         │
│  UPSERT transactions        │
└──────┬──────────────────────┘
       │
       │ Update balances
       ▼
┌─────────────────────────────┐
│  accounts table             │
│  UPDATE current_balance     │
└──────┬──────────────────────┘
       │
       │ Save cursor for next sync
       ▼
┌─────────────────────────────┐
│  plaid_items table          │
│  UPDATE cursor              │
└─────────────────────────────┘

Security Architecture

Authentication Layers

┌──────────────────────────────────────┐
│        Client (Browser)              │
└──────────────┬───────────────────────┘
               │
       ┌───────┴────────┐
       │                │
┌──────▼──────┐  ┌──────▼──────┐
│   Finance   │  │    Admin    │
│   Auth      │  │    Auth     │
└──────┬──────┘  └──────┬──────┘
       │                │
       │                │
┌──────▼──────┐  ┌──────▼──────────┐
│  Supabase   │  │  Custom Admin   │
│  Auth       │  │  Auth + TOTP    │
│  (JWT)      │  │  (Session Token)│
└──────┬──────┘  └──────┬──────────┘
       │                │
       └────────┬───────┘
                │
       ┌────────▼────────┐
       │   Row Level     │
       │   Security      │
       │   (RLS)         │
       └─────────────────┘

Data Encryption

Plaid Access Tokens (AES-256-CBC):

// Encryption
const iv = crypto.randomBytes(16);
const cipher = crypto.createCipheriv('aes-256-cbc', key, iv);
let encrypted = cipher.update(token, 'utf8', 'hex');
encrypted += cipher.final('hex');
return iv.toString('hex') + ':' + encrypted;

// Decryption
const [ivHex, encryptedText] = encryptedToken.split(':');
const decipher = crypto.createDecipheriv('aes-256-cbc', key, Buffer.from(ivHex, 'hex'));
let decrypted = decipher.update(encryptedText, 'hex', 'utf8');
decrypted += decipher.final('utf8');

Row Level Security (RLS) Policies

Users can only access their own data:

-- Example: transactions table
CREATE POLICY "Users can view own transactions"
ON transactions FOR SELECT
USING (auth.uid() = user_id);

CREATE POLICY "Users can insert own transactions"
ON transactions FOR INSERT
WITH CHECK (auth.uid() = user_id);

Design Patterns

1. Context + Custom Hooks Pattern

AuthContext provides authentication state globally:

// Context Provider
export function AuthProvider({ children }) {
  const [user, setUser] = useState<User | null>(null);
  const [loading, setLoading] = useState(true);

  // ... auth logic

  return (
    <AuthContext.Provider value={{ user, loading, signIn, signOut }}>
      {children}
    </AuthContext.Provider>
  );
}

// Custom Hook
export function useAuth() {
  const context = useContext(AuthContext);
  if (!context) throw new Error('useAuth must be used within AuthProvider');
  return context;
}

// Protected Route Hook
export function useRequireAuth() {
  const { user, loading } = useAuth();
  const router = useRouter();

  useEffect(() => {
    if (!loading && !user) {
      router.push('/finance/login');
    }
  }, [user, loading, router]);

  return { user, loading };
}

2. SWR Data Fetching Pattern

Automatic caching and revalidation:

// Custom SWR hook
export function useAccounts() {
  const { user } = useAuth();

  const { data, error, mutate } = useSWR(
    user ? `/api/accounts/${user.id}` : null,
    fetcher,
    {
      revalidateOnFocus: true,
      revalidateOnReconnect: true,
      dedupingInterval: 5000,
    }
  );

  return {
    accounts: data,
    loading: !error && !data,
    error,
    refresh: mutate,
  };
}

3. Helper Function Pattern

Centralized database queries in lib/supabase.ts:

// Good: Use helper function
import { getUserAccounts } from '@/lib/supabase';
const accounts = await getUserAccounts(userId);

// Avoid: Direct Supabase query in components
const { data } = await supabase.from('accounts').select('*');

Benefits:

Type safety
Reusability
Easier testing
Consistent error handling

4. Server-Side API Routes Pattern

Secure server-side operations:

// app/api/plaid/exchange-token/route.ts
export async function POST(request: Request) {
  // 1. Verify authentication
  const session = await getServerSession();
  if (!session) {
    return NextResponse.json({ error: 'Unauthorized' }, { status: 401 });
  }

  // 2. Parse and validate request
  const { publicToken, userId } = await request.json();

  // 3. Call external API (Plaid)
  const response = await plaidClient.itemPublicTokenExchange({ public_token: publicToken });

  // 4. Encrypt sensitive data
  const encryptedToken = encryptAccessToken(response.access_token);

  // 5. Store in database
  await supabase.from('plaid_items').insert({ access_token: encryptedToken, user_id: userId });

  // 6. Return success
  return NextResponse.json({ success: true });
}

5. Type-Safe Environment Variables

Validation at startup (lib/env.ts):

const envSchema = z.object({
  supabase: z.object({
    url: z.string().url(),
    anonKey: z.string(),
    serviceRoleKey: z.string(),
  }),
  plaid: z.object({
    clientId: z.string(),
    secret: z.string(),
    env: z.enum(['sandbox', 'development', 'production']),
  }),
  encryption: z.object({
    key: z.string().length(64),
  }),
});

export const env = envSchema.parse({
  supabase: {
    url: process.env.NEXT_PUBLIC_SUPABASE_URL,
    anonKey: process.env.NEXT_PUBLIC_SUPABASE_ANON_KEY,
    serviceRoleKey: process.env.SUPABASE_SERVICE_ROLE_KEY,
  },
  // ... more config
});

Performance Optimizations

1. Query Optimization

Single query with nested relations (lib/supabase.ts:256-292):

// ✅ Optimized: Single query with nested relations
const { data } = await supabase
  .from('accounts')
  .select(`
    *,
    plaid_items (
      institution_name,
      status
    )
  `)
  .eq('user_id', userId);

// ❌ Unoptimized: Multiple queries
const accounts = await supabase.from('accounts').select('*');
for (const account of accounts) {
  const item = await supabase.from('plaid_items').select('*').eq('id', account.plaid_item_id);
}

2. SWR Caching

Reduces unnecessary API calls:

<FinanceSWRProvider>
  {/* All child components share SWR cache */}
  <Dashboard />
</FinanceSWRProvider>

3. Turbopack Build

Faster builds and hot reload:

{
  "scripts": {
    "dev": "next dev --turbopack",
    "build": "next build --turbopack"
  }
}

Scalability Considerations

Database Indexing

-- High-frequency query indexes
CREATE INDEX idx_transactions_user_date ON transactions(user_id, transaction_date DESC);
CREATE INDEX idx_accounts_user ON accounts(user_id);
CREATE INDEX idx_plaid_items_user ON plaid_items(user_id);

Cursor-Based Pagination

// Plaid transactions sync uses cursor
const response = await plaidClient.transactionsSync({
  access_token: accessToken,
  cursor: lastCursor || '',
});

// Save cursor for next sync
await updateItemCursor(itemId, response.next_cursor);

Serverless Architecture

Next.js API Routes scale automatically on Vercel
Supabase handles database scaling
No persistent server state required

Next Steps:

Read Database Schema for database details
Review Authentication for auth implementation
Check API Reference for API documentation

Table of Contents​

System Overview​

Subdomain Routing​

Technology Stack​

Frontend Stack​

Backend Stack​

Data Management​

Application Architecture​

Layered Architecture​

File Structure​

Data Flow​

User Authentication Flow​

Plaid Bank Connection Flow​

Transaction Sync Flow​

Security Architecture​

Authentication Layers​

Data Encryption​

Row Level Security (RLS) Policies​

Design Patterns​

1. Context + Custom Hooks Pattern​

2. SWR Data Fetching Pattern​

3. Helper Function Pattern​

4. Server-Side API Routes Pattern​

5. Type-Safe Environment Variables​

Performance Optimizations​

1. Query Optimization​

2. SWR Caching​

3. Turbopack Build​

Scalability Considerations​

Database Indexing​

Cursor-Based Pagination​

Serverless Architecture​

Table of Contents
